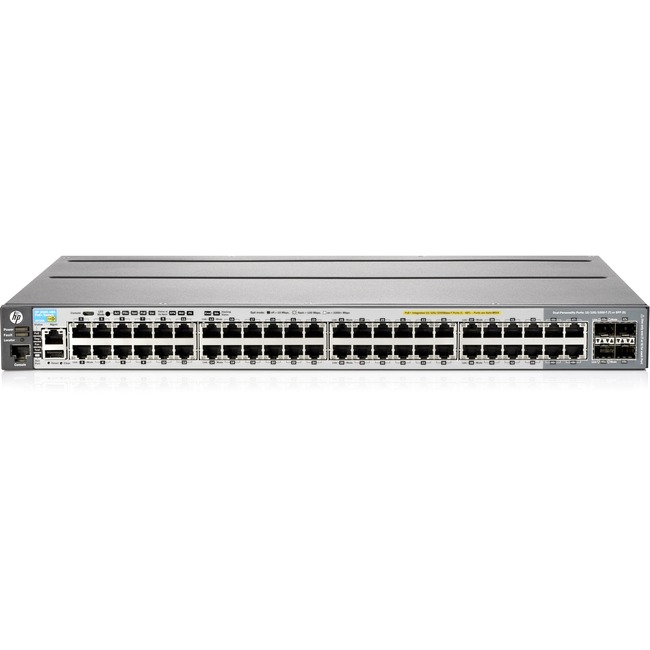

HPE 2920-48G-POE+ Switch - 44 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T - 4 Layer Supported - 4 SFP Slots - Power Supply - Twisted Pair - PoE Ports - 1U High - Rack-mountable - Lifetime Limited Warranty
44 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-T - 4 Layer Supported - 4 SFP Slots - Power Supply - Twisted Pair - PoE Ports - 1U High - Rack-mountable - Lifetime Limited Warranty
| Brand Name | HPE |
| Certifications & Standards | Safety: - CE
- EN 60825-1
- FCC Part 15
- EN 55022 Class A
- EN 55024: 1998
- C-Tick
- ICES-003 Class A
- VCCI
- Class A
- IEC 60950-1 :Second Edition
- IEC 60825-1
- EN62479:2010
- CSA C22.2 No.
- 60950-1-07 2nd Edition
- EN 60950-1:2006+A11:2009+A1:2010+A12:2011
- IEC
- 60950-1 (ed.2): am1
Emissions: - FCC part 15 Class A
- VCCI Class A
- EN 55022/CISPR 22 Class A
Immunity: - EN 55024 CISPR 24
- IEC 61000-4-2
- IEC 61000-4-3
- IEC 61000-4-4
- IEC 61000-4-5
- IEC 61000-4-6
- IEC 61000-4-8
- IEC 61000-4-11
- IEC 61000-3-2
- IEC 61000-3-3
- IEC 60825-1
IEEE Standards: - 802.1AX
- 802.1D
- 802.1p
- 802.1Q
- 802.1s
- 802.1v
- 802.1w
- 802.3ab
- 802.3ad
- 802.3af
- 802.3at
- 802.3az
- 802.3x
|
| Compatible Rack Unit | 1U |
| Depth | 13.2" |
| Environmental Certification | RoHS |
| Environmental Certification | 80 Plus |
| Ethernet Technology | Gigabit Ethernet |
| Expansion Slot Type | SFP |
| Expansion Slot Type | Stacking Module |
| Flash memory | 1 GB |
| Form factor | Rack-mountable |
| Height | 1.8" |
| Input voltage | 110 V AC |
| Input voltage | 220 V AC |
| Layer Supported | 4 |
| Limited Warranty | Lifetime |
| Manageable | Yes |
| Management | - IMC - Intelligent Management Center
- Command Line Interface (CLI)
- Web-based Management
- SNMP v1/2c/3
- Telnet
- RMON
- QoS
- DHCP
- VLAN
- MIB
- sFlow
- Find-Fix-Inform
- XRMON
|
| Manufacturer Part Number | J9729A#ABA |
| Manufacturer Website Address | http://www.hpe.com |
| Marketing Information | Product overview The HP 2920 Switch Series consists of four switches: the HP 2920-24G and 2920-24G-PoE+ Switches with 24 10/100/1000 ports and the HP 2920-48G and 2920-48G-PoE+ Switches with 48 10/100/1000 ports. Each switch has four dual-personality ports for 10/100/1000 or SFP connectivity. In addition the 2920 switch series supports up to four optional 10 Gigabit Ethernet (SFP+ and/or 10GBASE-T) ports as well as a two-port stacking module. These options provide you with flexible and easy-to-deploy uplinks and stacking. Together with static and RIP routing robust security and management enterprise-class features free lifetime warranty and free software updates the 2920 switch series is a cost-effective scalable solution for customers who are building high-performance networks. These switches can be deployed at the enterprise edge in remote branch offices and in converged networks. |
| Media Type Supported | Twisted Pair |
| Memory Technology | SDRAM |
| Network Technology | 10/100/1000Base-T |
| Number of PoE+ (RJ-45) Ports | 44 |
| Number of Total Expansion Slots | 7 |
| Package Contents | - 2920-48G-POE+ Switch
- 1 x Power Cord
- 1 x Modular Power Supply
|
| Port/Expansion Slot Details | 48 x Gigabit Ethernet Network |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Expansion Slot |
| Port/Expansion Slot Details | 3 x Expansion Slot |
| Power source | Power Supply |
| Product Model | 2920-48G-POE+ |
| Product Name | 2920-48G-POE+ Switch |
| Product Series | 2920 |
| Standard Memory | 512 MB |
| Token Ring Port | No |
| UPC Alternates | 657379389191 886112322564 |
| Weight (Approximate) | 12.57 lb |
| Width | 17.4" |
| Manufacturer | Hewlett Packard Enterprise |
| Product Type | Layer 3 Switch |
